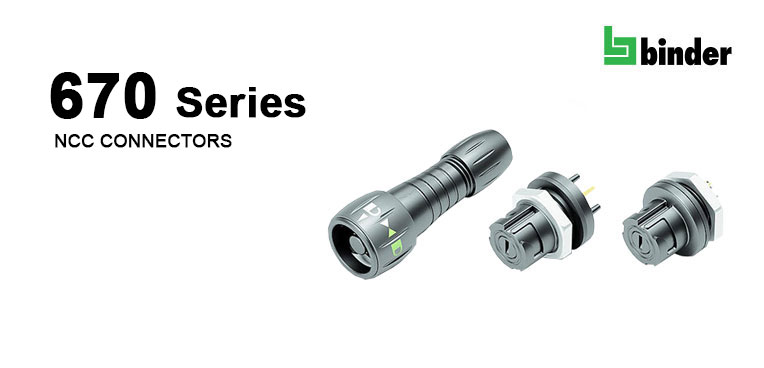

The New Series 670 NCC Subminiature Connectors expand the binder product range with a system for applications with restricted space.
Perfect for applications with restricted space
The newly developed products target the growing need for suitable, reliable circular connectors in many applications including lighting and test and measurement instrumentation. The Series 670 are 5-pin subminiature connectors with a bayonet closure and a cable bushing from 3.5 to 5.0mm. The flange-type socket is provided with soldered and dip-soldered contacts. A key feature of these connectors is that the contacts are completely protected against water, dirt and penetration by foreign objects when not connected. The NCC (Not Connected Closed) connectors use a spring cover to protect the contacts even when disconnected.
Permanent Protection
With the NCC system, the Series 670 achieves protection to IP 54 when not connected. When the subminiature connector is connected, the level of protection increases to IP 67. The core function of the NCC feature from binder keeps the contacts free from environmental effects and is also distinguished by its high durability. Sascha Döbel, product manager at binder, explains, “Our NCC subminiature connectors are designed for more than 1000 mating cycles. With this flexibility and long life combined with the additional characteristics of the Series 670, we put the focus on the increasing demands of a growing group of users.”
Compact Profile
Users with applications that demand frequent mating and demating will appreciate Series 670 subminiature connectors as will those users who need connectors with a compact profile for applications with the restricted space.
Strong Resistance
In addition to the key feature of environmental protection, the Series 670 plastic socket impresses with its high resistance to vibration and shock loads. The product is also particularly resistant to heat and cold with an operating temperature range from -25°C to +85°C. binder has made available connector housings in different colours which is ideal for those applications where identification and organization is important.
From customer development to award-winning series product
Developed more than 30 years ago as a customer-specific solution, NCC technology soon attracted a great deal of interest. The continuing high demand prompted Markus Binder, general manager of the binder group, to make the wise and forward-looking decision to introduce the initially customer-specific NCC solution as a series product.
Now the connectors of the binder 670 series have received a prestigious award: the silver medal at the ‘2021 LEAP Award’ (Leadership in Engineering Achievement Program) – an annual competition that recognizes particularly innovative and forward-thinking products in the design and engineering space. Twelve independent judges, including recognized engineering and academic professionals, selected the most award-worthy products from more than 100. Sponsor of the LEAP Award is the US media company WTWH Media with its publications ‘Design World’, ‘Fluid Power World’, ‘EE World’ and ‘Fastener Engineering’
