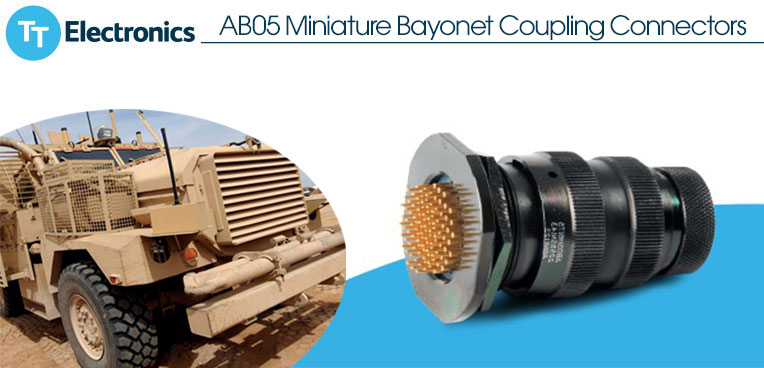

The AB05 Series Miniature Bayonet Coupling connectors fully conform to the stringent requirements of British Standard 9522 F0017. This specification supercedes Defence Standard 59-35 (Part 1), which was itself based on the American Military Specification Mil-C-26482 Series 1 (solder). Initially developed for aircraft applications, miniature bayonet coupling connectors are now extensively used in fighting vehicles, military communications, professional audio and general industrial markets where high reliability, miniaturisation and cost effectiveness are of prime importance.
AB05 series connectors are interchangeable and intermateable with similar connectors of British, European or American origin. Positive coupling is indicated by an audible click and by visual alignment of the three bayonet pins with locating windows in the coupling nut.
Aluminium alloy shells and a choice of surface finishes, offer a high resistance to corrosion. A choice of colour is available for occasions where the connector has to match the finish of the equipment. Insulators are polychloroprene with an operating temperature range of between -55ºC to 125ºC. Contact arrangements with from 2 to 61 ways feature size 16 AWG (13 amps) or size 20 AWG (7.5 amps) solder bucket, crimp or P.C.B contacts. Sealing against water and dust ingress is achieved between mating connectors by using a square section gasket between shells, by a peripheral seal on the insulators and by individual wire seal grommets. In response to modern environmental considerations, AB05 connectors can be specified with alternative cadmium free surface finishes.
Tecnical Information of AB05 Miniature Bayonet Coupling Connectors
Mechanical Features
Shell size: 8 to 24, measured in sixteenths of an inch
Coupling: Three pin bayonet
Contact Termination: Solder bucket, crimp (rubber retention), pin tails for P.C.B. applications and flexible printing wiring
Sealing: Barrier, or barrier and panel seal.
Dynamic peripheral seal between mating shells.
Materials
Shell: Aluminium alloy
Insulator: Polychloroprene
Grommet: Polychloroprene
Contacts: Brass
Accessories Hardware: Aluminium alloy
Plating Finishes
Shell: Conductive, olive drab over cadmium plate (alternatives available on request)
Contacts: Gold over nickel
Accessory Hardware: Conductive, olive drab over cadmium plate (alternatives available on request)
Technical Data
Temperature Range: -55ºC to +125ºC
Voltage at Sea Level: a) Working Voltage – d.c. or a.c. peak:
Size 20 Contacts: 700V (Voltage rating 1)
Size 16 Contacts: 1200V (Voltage rating 2)
b) Proof Voltage – d.c. or a.c. peak:
Size 20 Contacts: 2100V (Voltage rating 1)
Size 16 Contacts: 3000V (Voltage rating 2)
